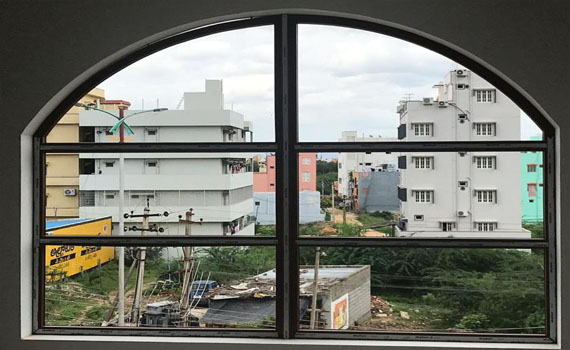

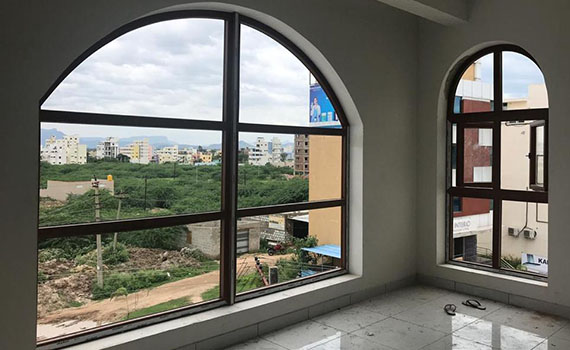

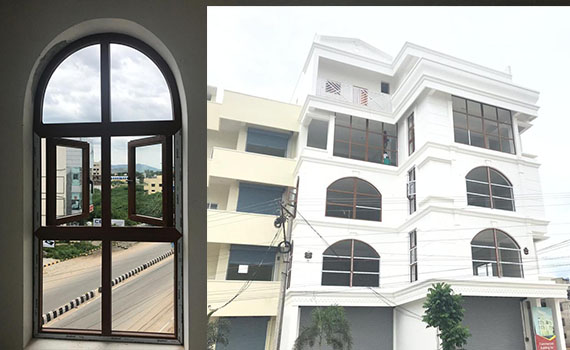

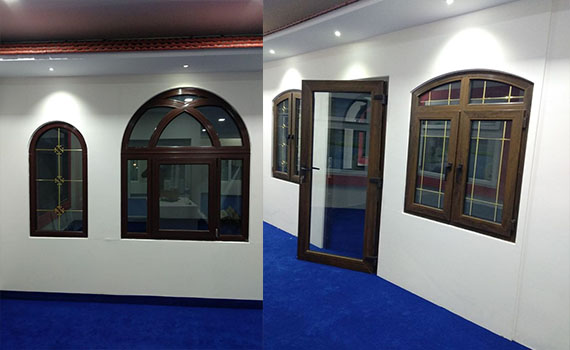

Top Rounded / Arch Windows

Top Rounded / Arch Windows

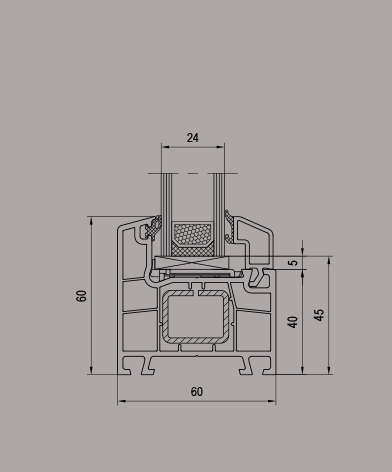

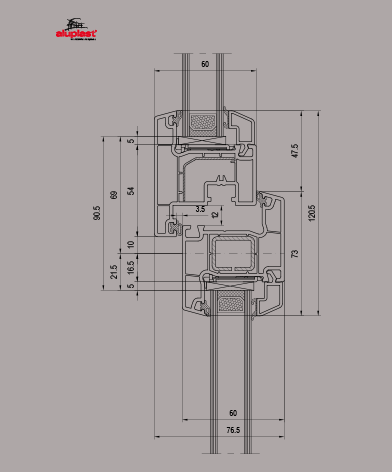

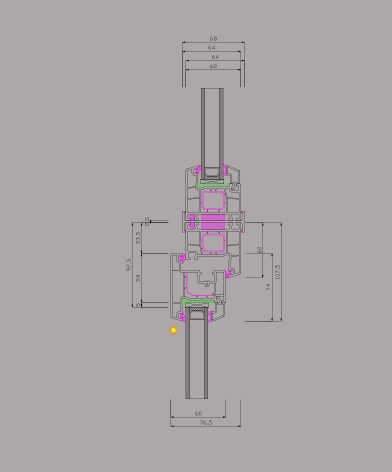

Section

Section

Glass

Glass thickness is selected based on the height of window (min 5mm). Glass design may be tempered or laminated according to clients requirment

Reason for Choose Us

aluplast Profile Details

IDEAL® 2000

60 mm construction depth

The system you can rely on.

Technical details

  • 60 mm construction depth
  • Uf=1.6 W/m²K
  • Uw=1.4 W/m²K with standard double-glazing with Ug=1.1 and Psi=0.040 W/mK
  • Uw=1.0 W/m²K best possible option with triple glazing with Ug=0.6 and Psi=0.030 W/mK
  • Up to 43dB sound protection (sound protection class 4)
  • Up to 33 mm glazing
  • Wide range of laminations available
  • Recessed option, roundline option
  • 3 chamber profile
  • Concealed drainage possible
  • Quality, performance & value.
  • Providing comfort and protection for your family.
60mm

construction depth

1.6W/m²K

Uf value

1.0 W/m²K

Best Uw value

dB

Sound insulation
