Lift & Slide Door

Lift & Slide Door

Glass

Glass thickness is selected based on the height of window (min 5mm). Glass design may be tempered or laminated according to clients requirment

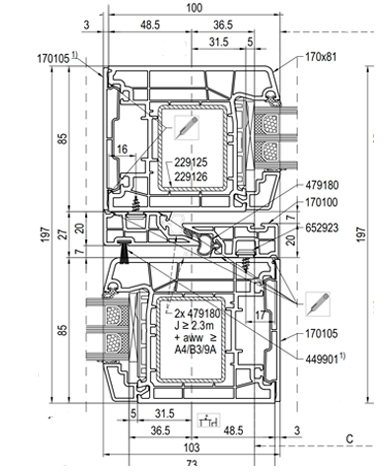

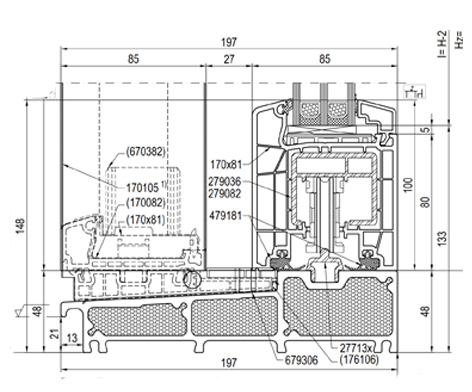

Section

Section

Reason for Choose Us

aluplast Profile Details

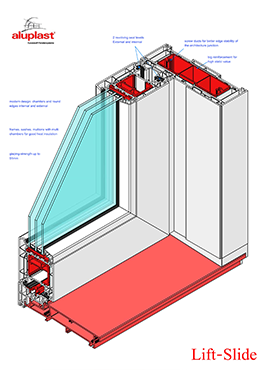

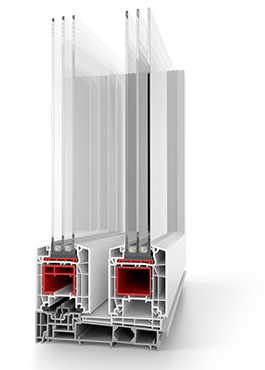

Lift-and-slide door

85 mm construction depth

Technology that stands out.
Outstanding certified values in terms of wind and water tightness, burglary resistance and acoustic insulation even at maximum sizes - unique in the field of lift-and-slide doors!

Technical Details

  • 85 mm construction depth
  • Uf=1.6 W/m²K
  • Uw=0.92 W/m²K with standard-triple-glazing with Ug=0.6 and Psi=0.040 W/mK
  • Uw=0.76 W/m²K best possible option with triple-glazing with Ug=0.4 and Psi=0.030 W/mK
  • threshold
  • Aluminium guide rail
  • Up to RC2 burglary protection
  • Up to 44 dB sound insulation (sound insulation class 4)
  • Up to 51 mm glazing
  • Wide range of lamination options
  • Available with aluskin® aluminium shells (wide array of colours)
  • Concealed drainage is possible
  • Barrier-free option
  • fixframe option
85mm

construction depth

1.1 W/m²K

Uf value

0.63 W/m²K

Best Uw value

dB

Sound insulation
